- Simple and reliable 3 point frame structure
- Easy and comfortable to operate with EPS steering, compact body and a floating design that greatly enhances manoeuvrability in confined spaces
- Redesigned third mast roller provides clear visibility for the operator
- Three speed settings
- Chains manufactured by Donghua
- Cylinders are designed to automatically buffer whilst mast is lowered, enabling safer pallet handling
- Sliding battery box
- Lowering of forks is 30% faster compared to previous model
- Optional sideshift
- Wider platform with spring shock absorbers provides a comfortable operating environment

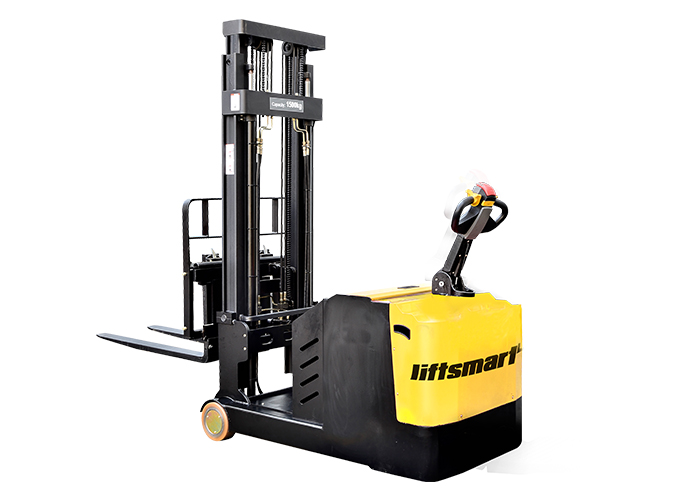

Liftsmart CB12-15
| CB12D | CB15D | CB12T | CB15T | CB12FD | CB12FD | |
|---|---|---|---|---|---|---|
| Load Capacity (kg) | 1,200 | 1,500 | 1,200 | 1,500 | 1,200 | 1,500 |
| Load Centre (mm) | 600 | 600 | 600 | 600 | 600 | 600 |
| Max Lift Height (mm) | 4,000 | 4,800 | 4,000 | 4,800 | 4,000 | 4,800 |
| Battery Capacity | 24V / 210 / 280 / 340Ah | 24V / 210 / 280 / 340Ah | 24V / 210 / 280 / 340Ah | 24V / 210 / 280 / 340Ah | 24V / 210 / 280 / 340Ah | 24V / 210 / 280 / 340Ah |
