Dingli Summit SL1323-AWD
Dingli Summit SL1323-AWD

Type:access equipment

Make:dingli

Power:Internal Combustion

Max Height:13 metres

Rough Terrain Scissor Lift

The Summit SL1323-AWD Rough-Terrain Scissor Lift is an extremely versatile lifter that provides a large platform with a 680 kg load limit up to heights of 15 m.

With AC power reaching up to the platform and automatic hydraulic levelling, the Summit SL1323-AWD platform reaches up to 13 m in height, providing up to a 15 m reach. Full of standard features, it comes with a Kubota engine, solid tyres and a selection of optional extras to ensure your SL1323-AWD Rough-Terrain Scissor Lift is tailored to your needs.

Standard Features Can Bus Technology Proportional controls Two self-closing gates 4WD Oscillating axle Slide-out engine tray Tilt protection Tilt alarm Horn Hour meter Safety electric pump Fault indicator on platform Anti-restart engine protection Glow plugs for cold starting Two extendable platforms Flashing beacons European III emission engine Overload sensor Automatic levelling hydraulic outriggers Hydralic oil cooler AC power to the platform Optional Extras Hydraulic generato Hydraulic welder Hydraulic compressor Hydraulic water pump Platform work lights

Type:access equipment

Make:dingli

Power:Internal Combustion

Max Height:13 metres

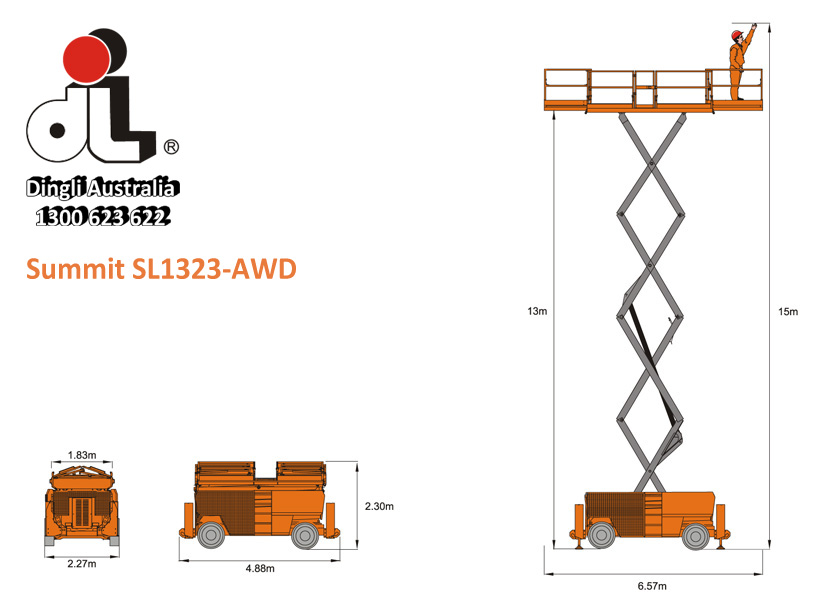

Type: Rough Terrain Scissor Lift
Model: SL1323-AWD
S.W.L: 680 kg
Working Height: 15 m
Platform Floor Height: 13 m
Platform Size: 3.98 m x 1.83 m
Rotation: 3.98 m x 1.83 m
Overall Length: 4.88 m
Overall Height: 2.98 m
Overall Width: 2.27 m
Weight: 8200 kg
