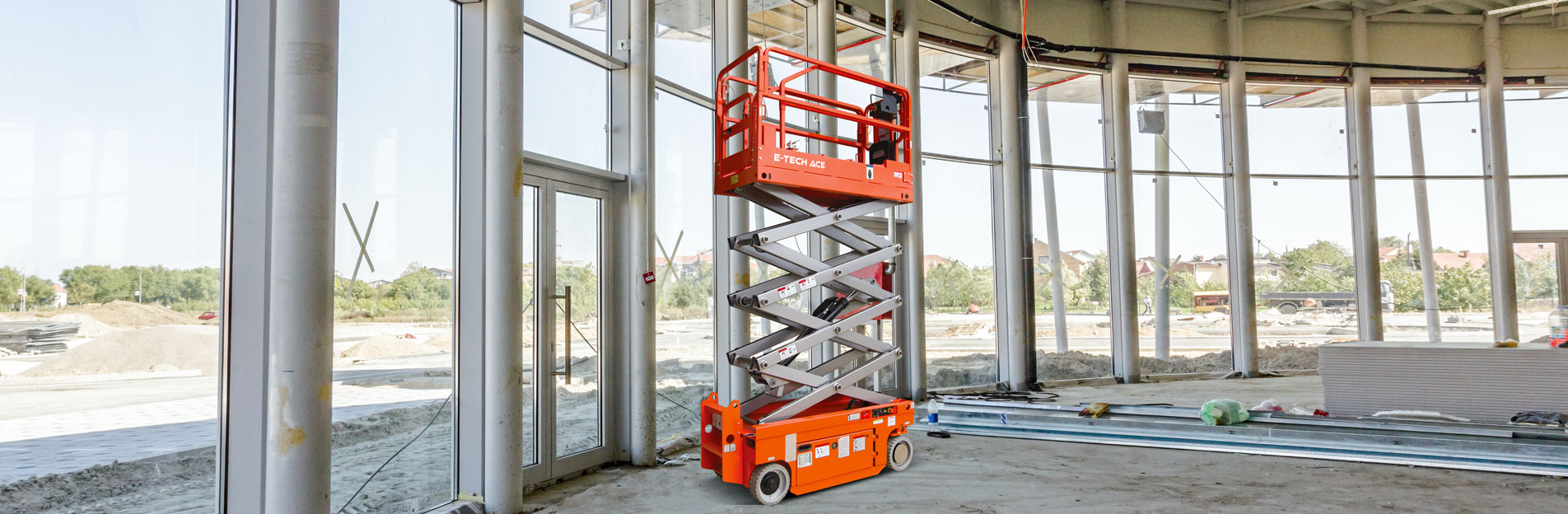

Dingli E-Tech S06-ACE Self-Propelled Scissor Lift

Dingli E-Tech S06-ACE Self-Propelled Scissor Lift
Dingli E-Tech S06-ACE Self-Propelled Scissor Lift
Dingli E-Tech S06-ACE
Dingli E-Tech S06-ACE
Dingli E-Tech S06-ACE
Dingli E-Tech S06-ACE
Dingli E-Tech S06-ACE
Dingli E-Tech S06-ACE

Type:access equipment

Make:dingli

Power:Electric

Max Height:5.8 metres

Electric Scissor Lift

The Dingli E-Tech S06-ACE Electric Scissor Lift is an extremely versatile personnel lifter that provides a large platform for placing items onto for loading and unloading.

With the platform floor reaching up to 5.8 m and providing a reach height of 7.8 m, the E-Tech S06-ACE Electric Scissor Lift can support up to 230 kg and is jam packed full of standard features including non-marking tyres, tilt sensor and an extendable platform.

  • Backed by one of Australia largest materials handling companies, Adaptalift Group
  • Full service network

The new E-TECH ACE range of electric scissor lifts from Dingli cater to customers looking for a more environmentally friendly lifting solution.

The new range features a fully sealed AC driving and lifting system, replacing traditional DC systems whilst providing advantages including:

  • Maintenance free
  • Increased IP67 protection against dust and liquids
  • Increased efficiency
  • Increased safety

All units are manufacturer guaranteed for two years.

Type:access equipment

Make:dingli

Power:Electric

Max Height:5.8 metres

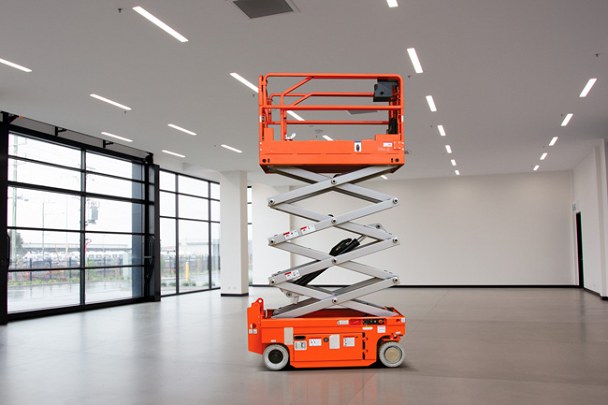

S06 e 7 w608

Standard Features:

  • Proportional controls Automatic pothole protection
  • Self-lock gate on platform
  • Drivable at full height
  • Non-marking tyres 2WD
  • Automatic brakes
  • Emergency lowering system
  • Emergency stop button
  • Cylinder holding valve
  • Onboard diagnostic system
  • Tilt sensor with alarm
  • All motion alarm
  • Horn
  • Hour meter
  • Safety brackets
  • Forklift pockets
  • Folding guardrails
  • Extendable platform
  • Charger protection
  • AC power to the platform
  • Flashing beacon

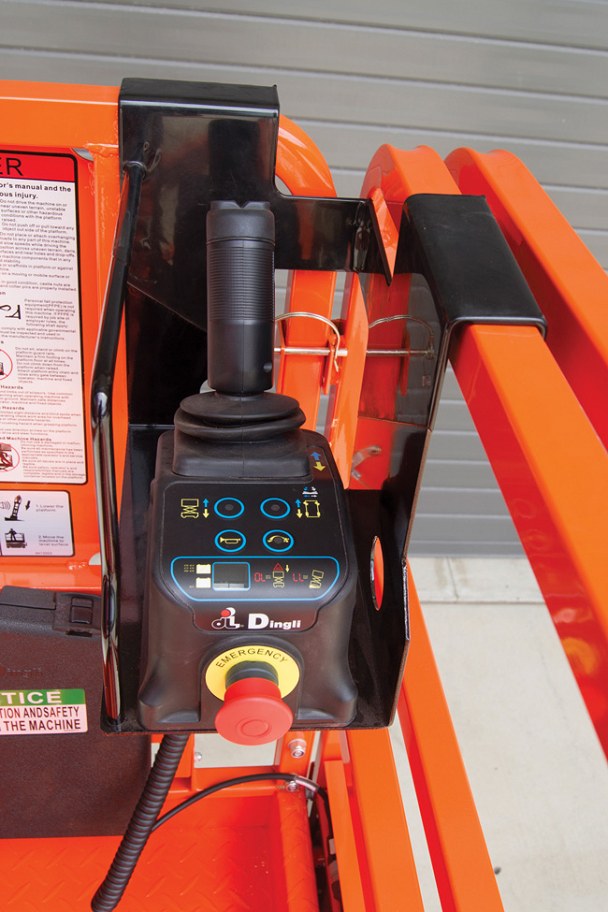

S06 e 4 w608
Type: Electric Scissor Lift
Model: S06-ACE
S.W.L: 230 kg
Working Height: 7.8 m
Platform Floor Height: 5.8 m
Platform Size: 1.67 m x 0.74 m
Overall Length: 1.86 m
Overall Height (Rails Down): 1.83 m
Overall Width: 0.76 m
Weight: 1,560 kg
